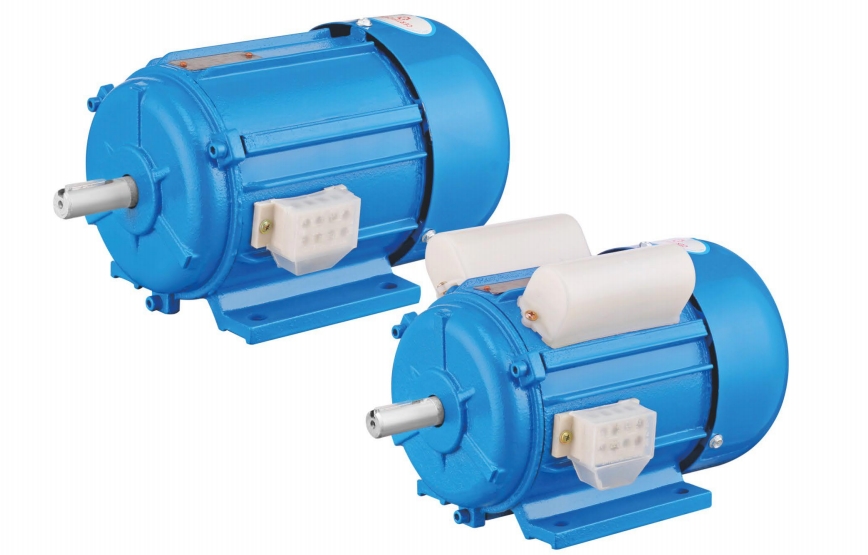

JY SERIES FRACTIONAL HORSEPOWER ASYNCHRONOUS MOTOR2

JY series single-phase capacitor start induction motor is widely used in air compressors,
refrigerators, medical apparatus and other small machines requiring full-load starting, a
large starting torque and limited starting current.

These series motors are totally enclosed fan-cooled, with three frame sizes, 09, 1, 2.The
frames are made of cast iron or cast aluminium according to the requests.

Model:
JY
Brand:
zheqingsihe

model:	YC711-2 YC712-2 YC801-2 YC802-2 YC90S-2 YC90L1-2 YC90L2-2 YC100L1-2 YC100L2-2 YC112M-2 YC132S-2 YC711-4 YC712-4 YC801-4 YC802-4 YC90S-4 YC90L1-4 YC90L2-4 YC100L1-4 YC100L2-4 YC112M-4 YC132S-4 YC132M-4
Availability:

Quantity:



Inquire Add to Basket

JY SERIES FRACTIONAL HORSEPOWER ASYNCHRONOUS MOTOR

Product Description

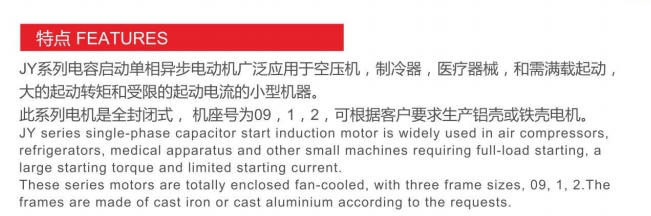

JY series single-phase capacitor start induction motor is widely used in air compressors, refrigerators, medical apparatus and other small machines requiring full-load starting, a large starting torque and limited starting current. These series motors are totally enclosed fan-cooled, with three frame sizes, 09, 1, 2.Theframes are made of cast iron or cast aluminium according to the requests.
