QDX/QX luxury submersible electric pump

The QDX/QX Deluxe submersible electric pump consists of three parts: the mercury, the seal, and the motor. The pump has a built-in protection device, the motor is located in the upper part of the pump, which is a single-phase or three-phase asynchronous motor, and the submersible pump is located in the lower part of the motor, which is a centrifugal impeller and a snailed casing structure; a double-end mechanical seal is used between the submersible pump and the motor, and the fixed stop seals are made of oil-resistant rubber with an ‘O-’ seal.

Model:
QDX
Brand:
zheqingsihe

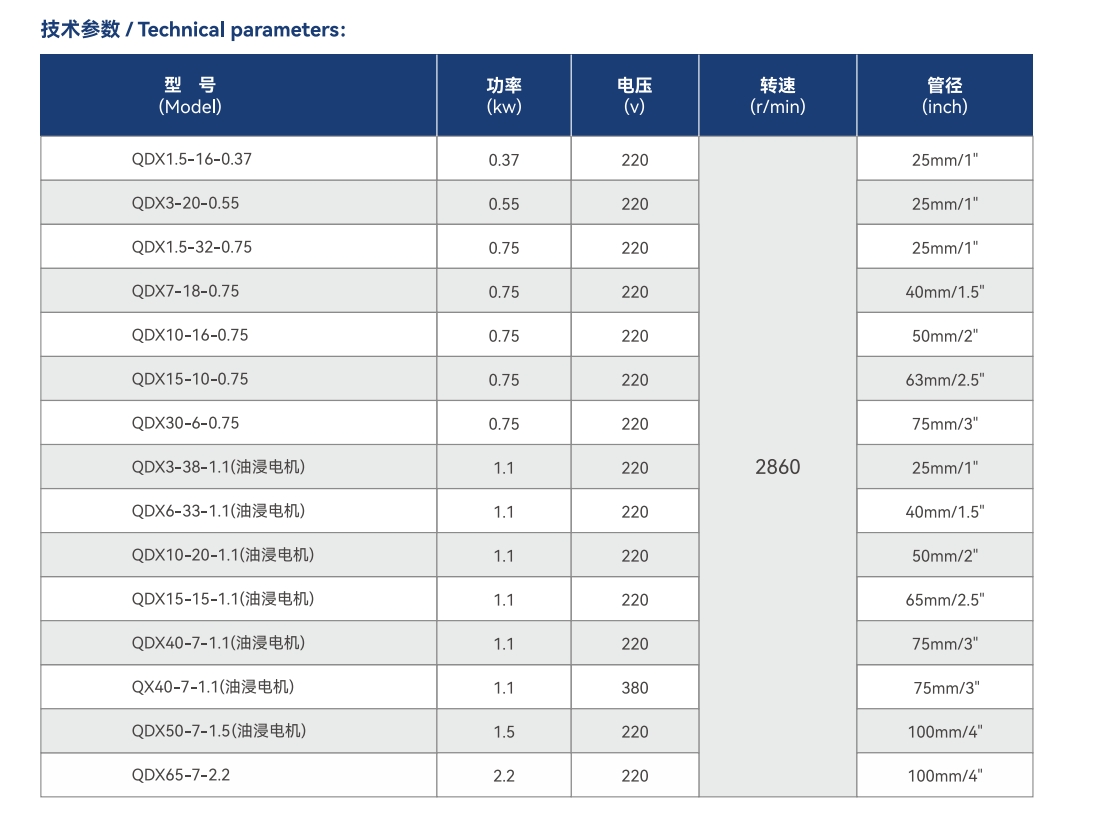

model:	QDX1.5-16-0.37 QDX3-20-0.55 QDX1.5-32-0.75 QDX7-18-0.75 QDX10-16-0.75 QDX15-10-0.75 QDX30-6-0.75 QDX3-38-1.1(Oil-immersed motor) QDX6-33-1.1(Oil-immersed motor) QDX10-20-1.1(Oil immersion motor) QDX15-15-1.1(Oil immersion motor) QDX40-7-1.1(Oil immersion motor) QX40-7-1.1(Oil immersion motor) QDX50-7-1.5(Oil Swimmer) QDX65-7-2.2
Availability:

Quantity:



Inquire Add to Basket

Product Description

The QDX/QX Deluxe submersible electric pump consists of three parts: the mercury, the seal, and the motor. The pump has a built-in protection device, the motor is located in the upper part of the pump, which is a single-phase or three-phase asynchronous motor, and the submersible pump is located in the lower part of the motor, which is a centrifugal impeller and a snailed casing structure; a double-end mechanical seal is used between the submersible pump and the motor, and the fixed stop seals are made of oil-resistant rubber with an ‘O-’ seal.

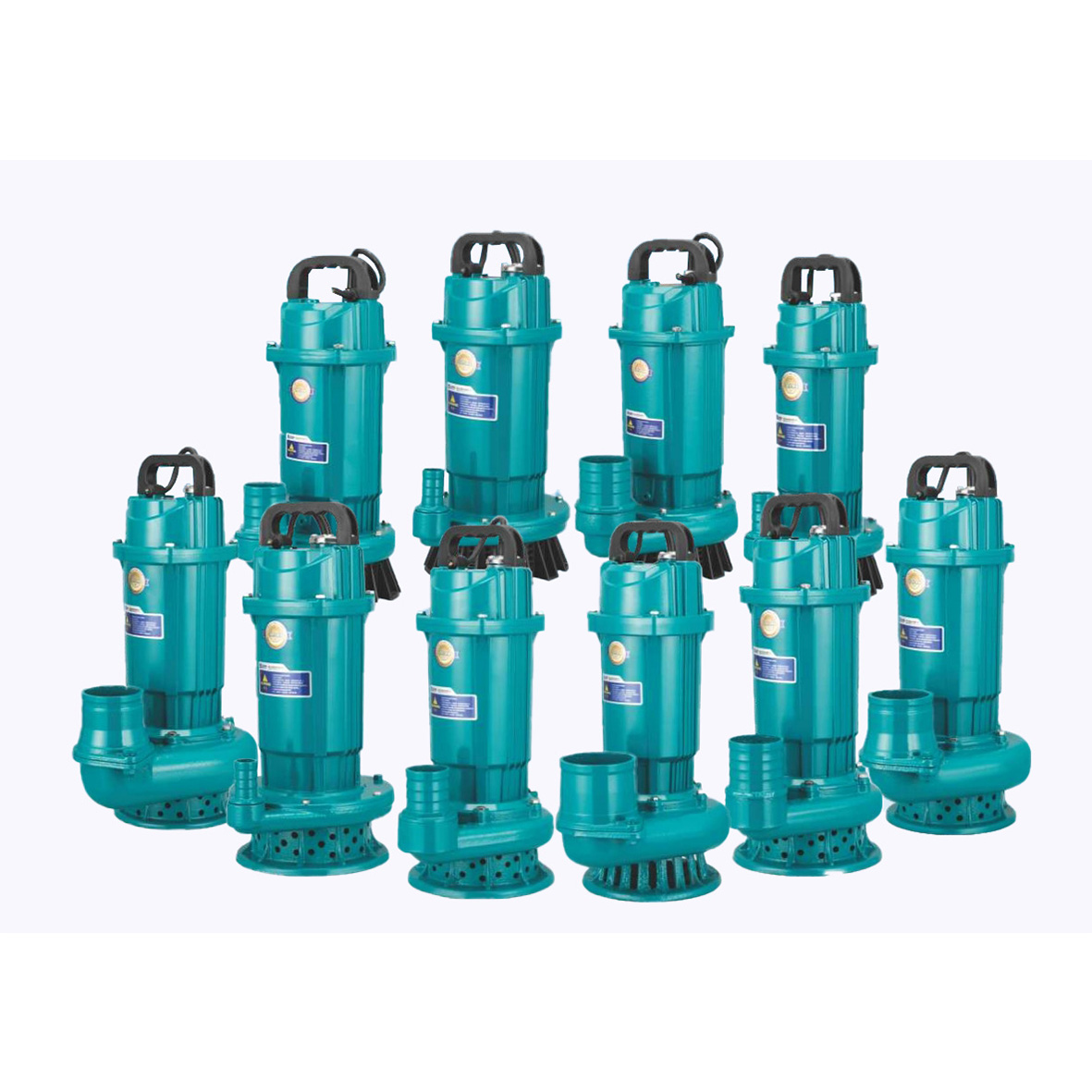

产品主图
