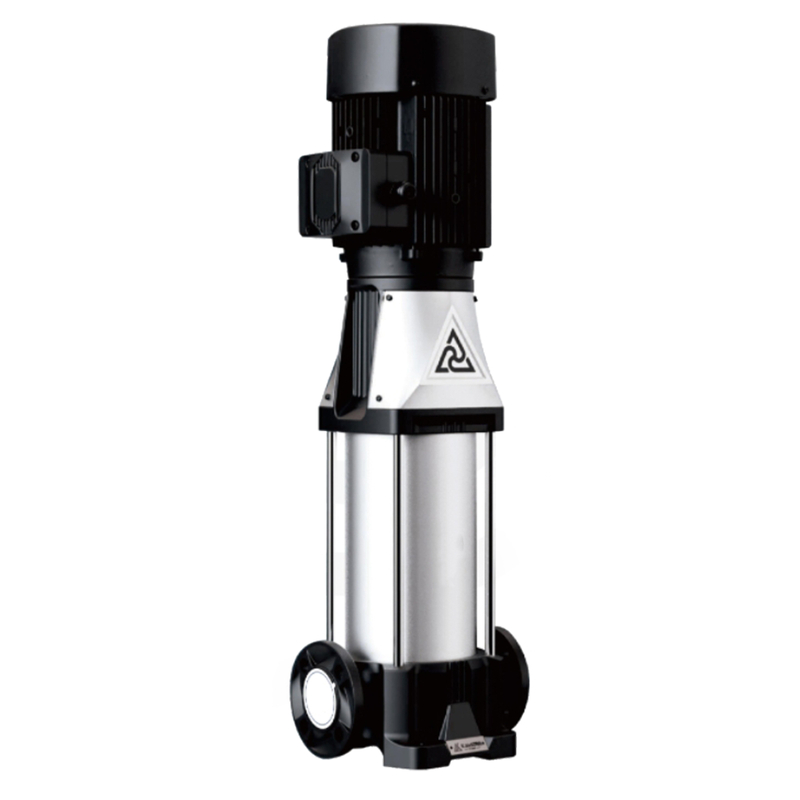

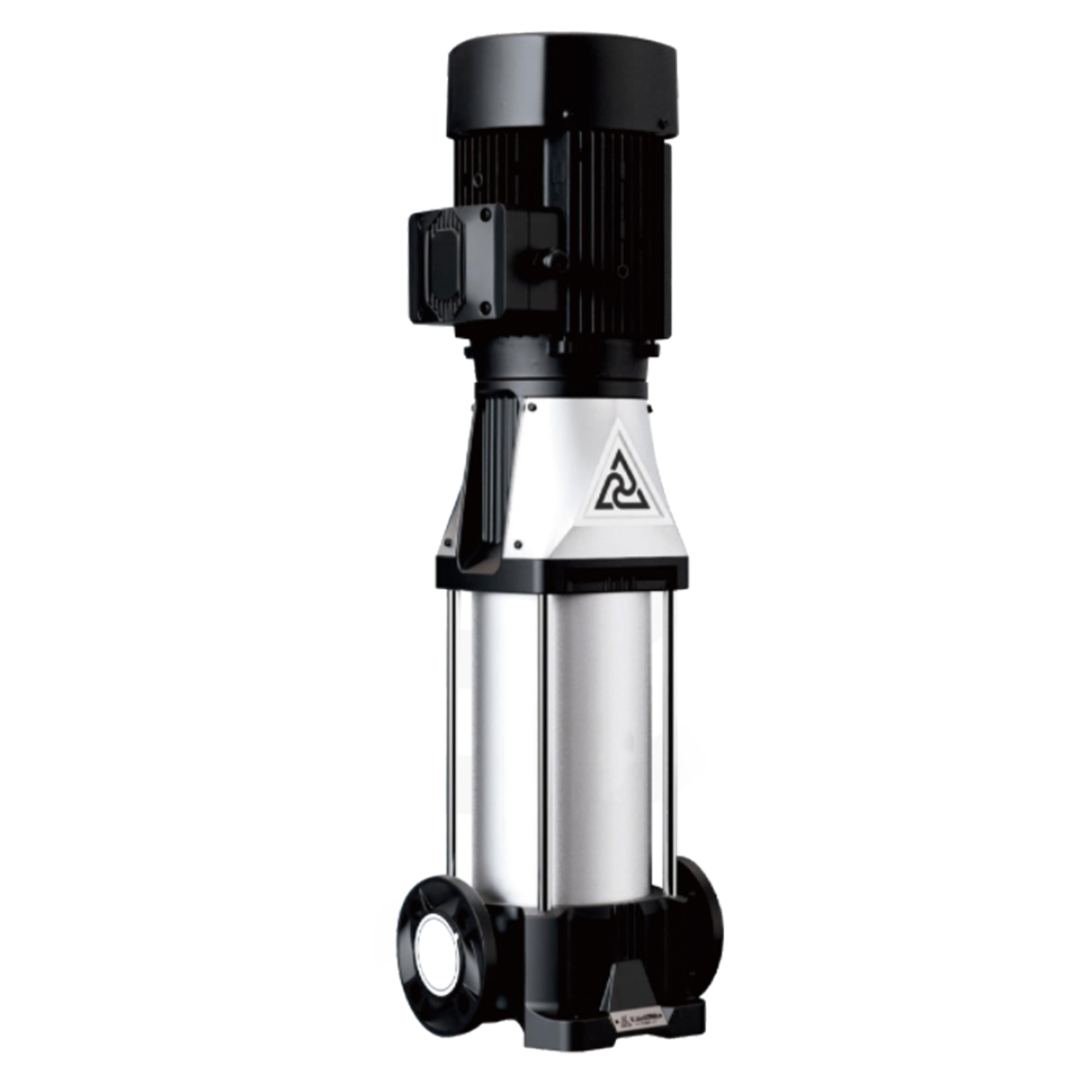

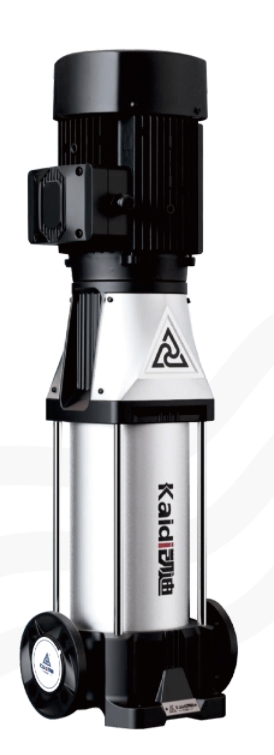

The CDL type vertical multi-stage pipeline pump is designed and manufactured by the enterprise on the basis of the domestic and foreign Youxiu pump type, combined with the user's usage requirements and relevant fire protection standards, and according to the JB/TQ6435-92 standard.
A new generation of products. This type of pump adopts a vertical segmental and stainless steel housing structure, so that the import and export of the pump are located on the same horizontal line and have the same caliber, and can be installed in the pipeline like a valve.
At the same time, it concentrates the high pressure of multi-stage pumps, the small area of vertical pumps and the advantages of convenient installation of pipeline pumps. At the same time, due to the excellent hydraulic model, it also has high efficiency and energy saving.
It has advantages such as stable operation, and the shaft seal adopts wear-resistant mechanical seal, no leakage and long service life. In order to better meet the requirements of users, the company has also developed GDLS with water outlet at the top.
Type, its import and export can be installed in different relative positions (0°, 90°, 180°), which is extremely convenient to use.
In order to enable users to use this type of pump more safely and reliably, our company has specially developed a convenient disassembly structure. In addition to having all the advantages of GDL and GDLS, it also replaces the mechanical density for you.
Sealing and other consumable parts provide a more convenient, fast and labor-saving way, making this type of pump more convenient for operation and maintenance.
