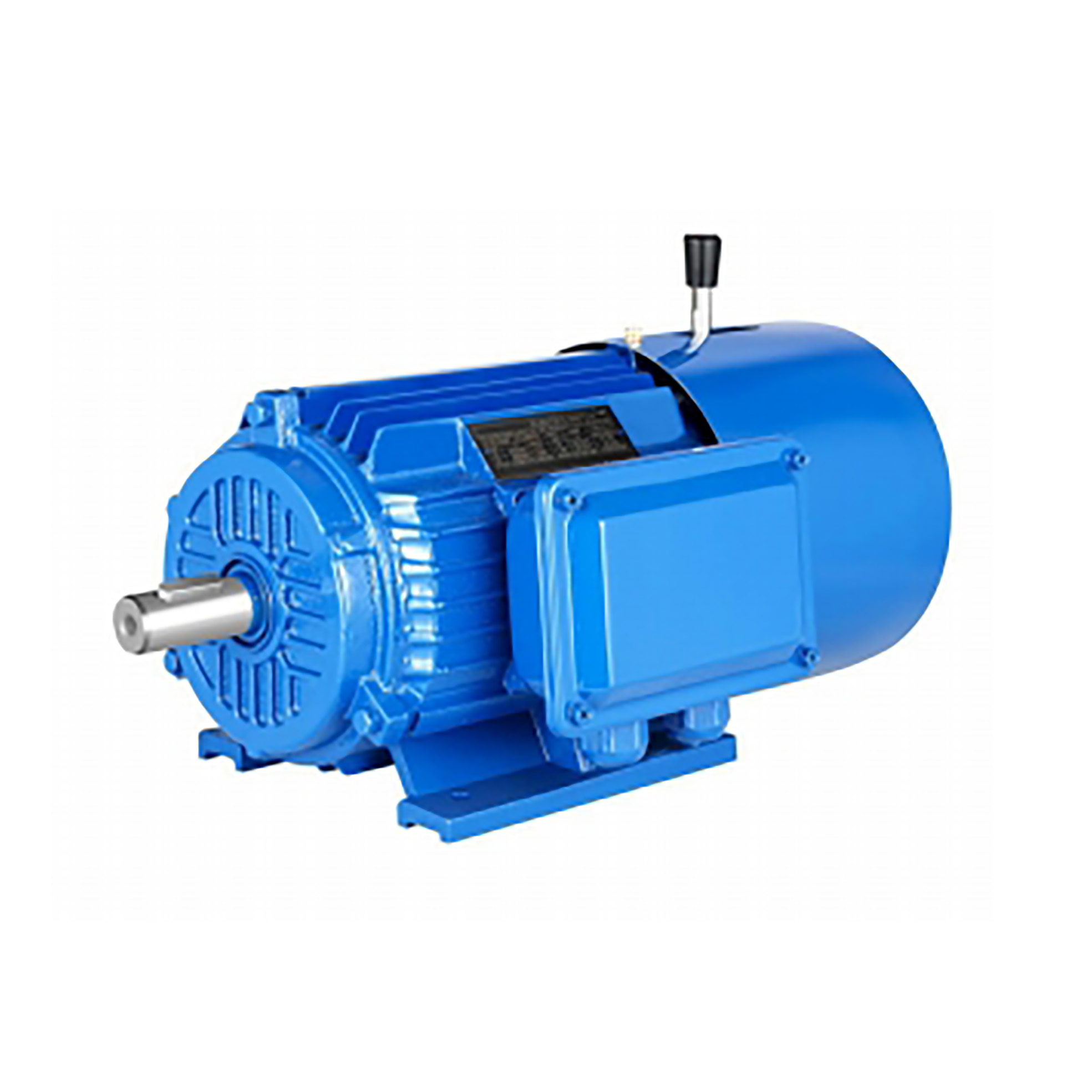

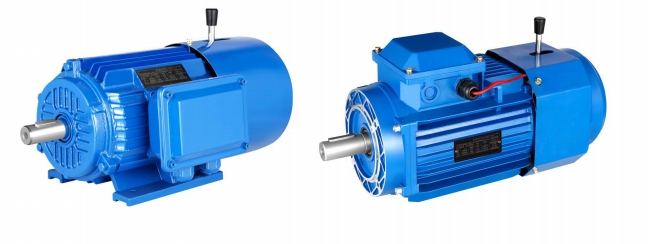

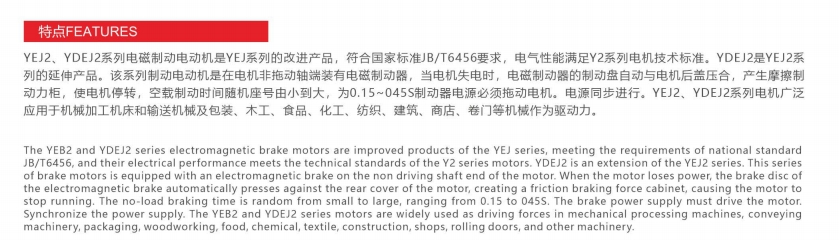

The YEB2 and YDEJ2 series electromagnetic brake motors are improved products of the YEJ series, meeting the requirements of national standard
JB/T6456, and their electrical performance meets the technical standards of the Y2 series motors. YDEJ2 is an extension of the YEJ2 series. This series
of brake motors is equipped with an electromagnetic brake on the non driving shaft end of the motor. When the motor loses power, the brake disc of
the electromagnetic brake automatically presses against the rear cover of the motor, creating a friction braking force cabinet, causing the motor to
stop running. The no-load braking time is random from small to large, ranging from 0.15 to 045S. The brake power supply must drive the motor.
Synchronize the power supply. The YEB2 and YDEJ2 series motors are widely used as driving forces in mechanical processing machines, conveying
machinery, packaging, woodworking, food, chemical, textile, construction, shops, rolling doors, and other machinery.
