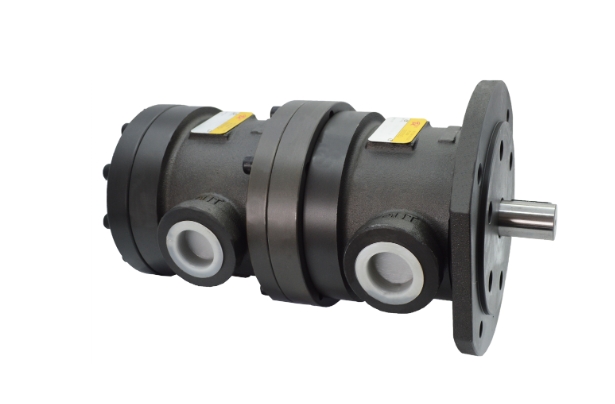

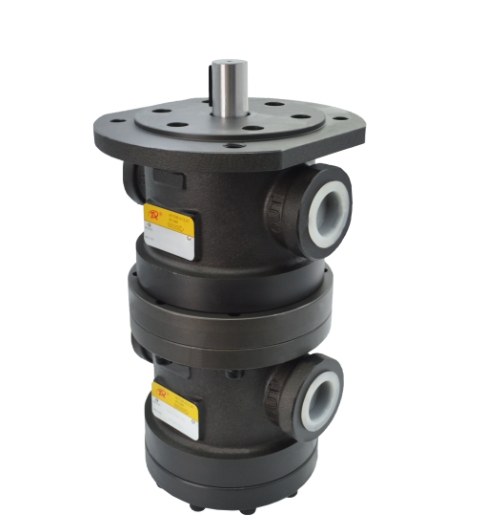

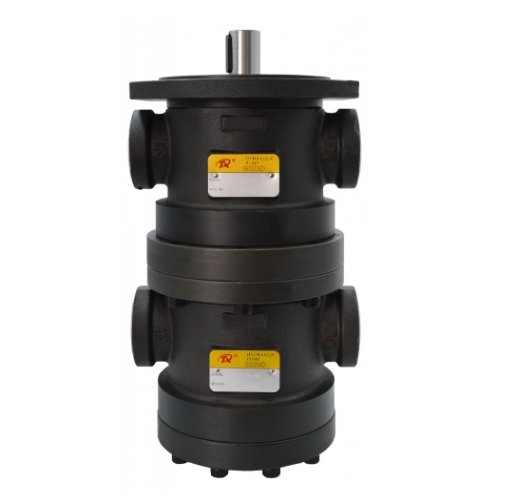

50T, 150T quantitative vane pump(150T-94-FRdouble

When the rotor of the vane pump rotates, the tips of the blades are tightly attached to the inner surface of the stator under the action of centrifugal force and pressure oil. The working volume formed by the two blades and the inner surfaces of the rotor and stator first absorbs oil from small to large, and then discharges oil from large to small. When the blades rotate once, they complete one oil absorption and discharge.
