When the rotor of the vane pump rotates, the tips of the blades are tightly attached to the inner surface of the stator under the action of centrifugal force and pressure oil. The working volume formed by the two blades and the inner surfaces of the rotor and stator first absorbs oil from small to large, and then discharges oil from large to small. When the blades rotate once, they complete one oil absorption and

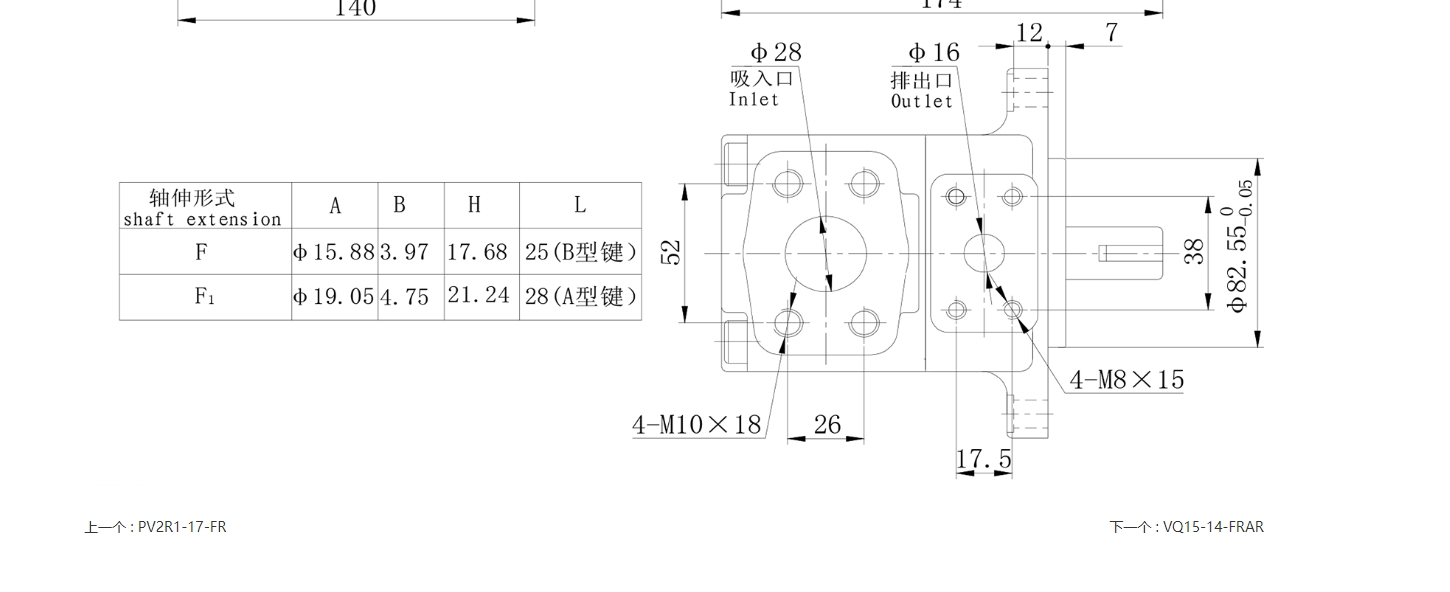

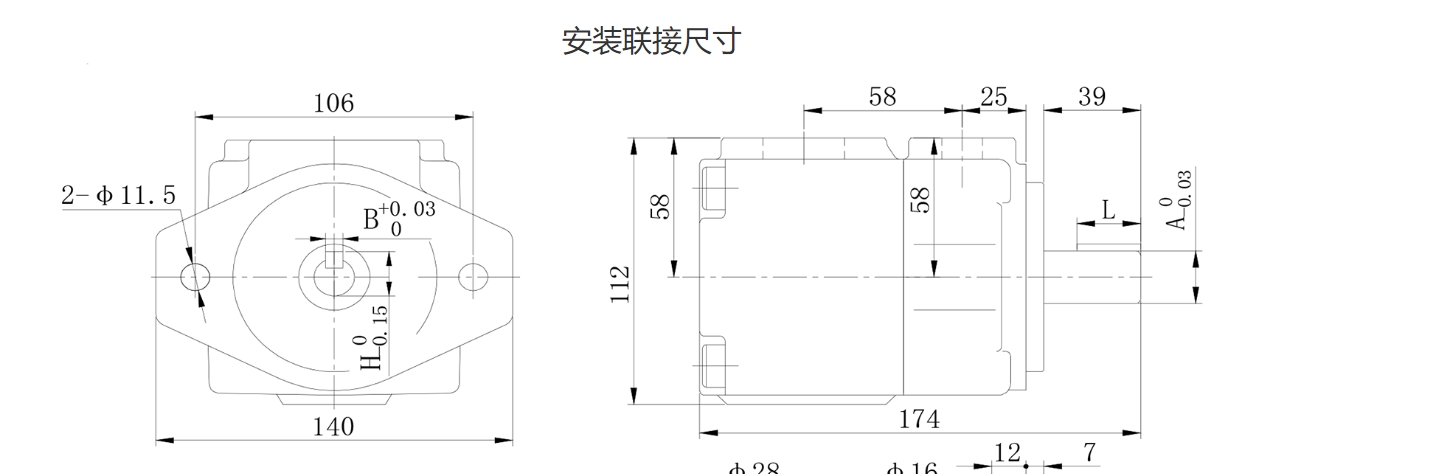

Installation and use

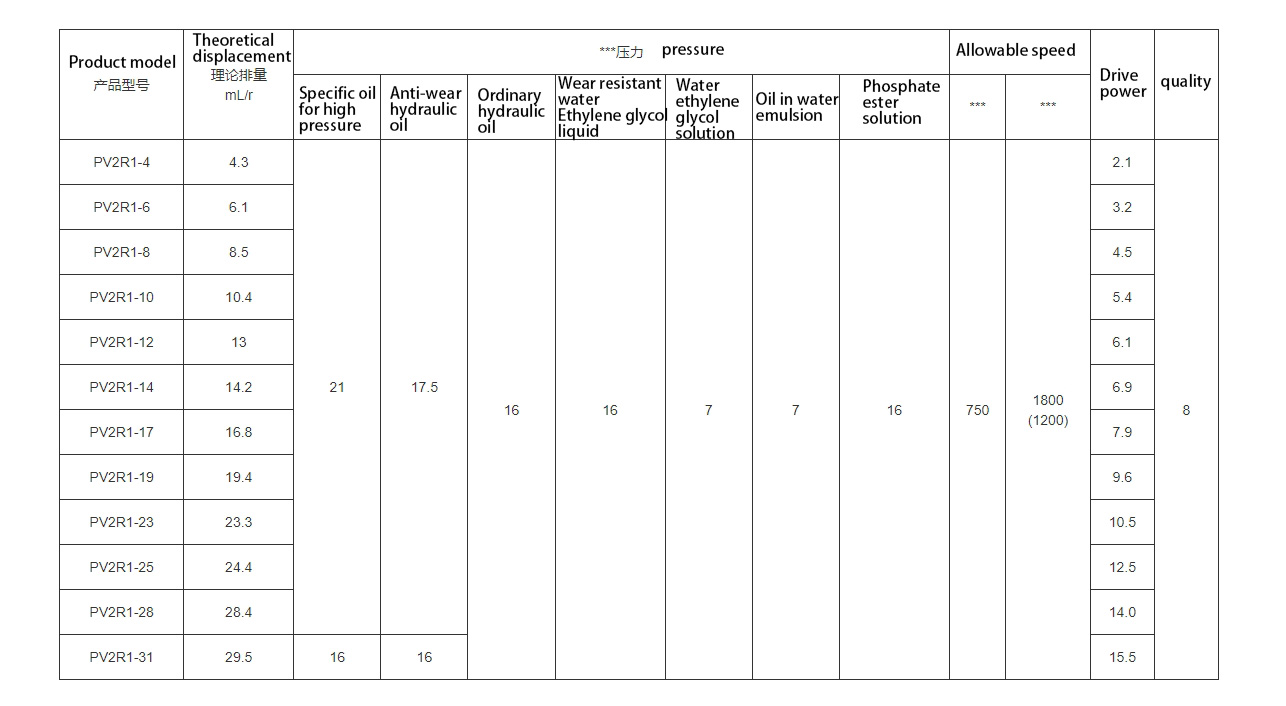

Note: When using pumps with nominal displacements of "4", "6", and "8" and a pressure exceeding 16MPa, the speed should exceed 1450r/min.
When using a large displacement single pump and corresponding dual pumps at high speeds, the negative pressure at the suction port should be reduced.
The value inside () refers to the value of using phosphate grease fluid and hydraulic fluid containing water.
For situations that require low noise, it is recommended to use a working speed of 1000r/min.

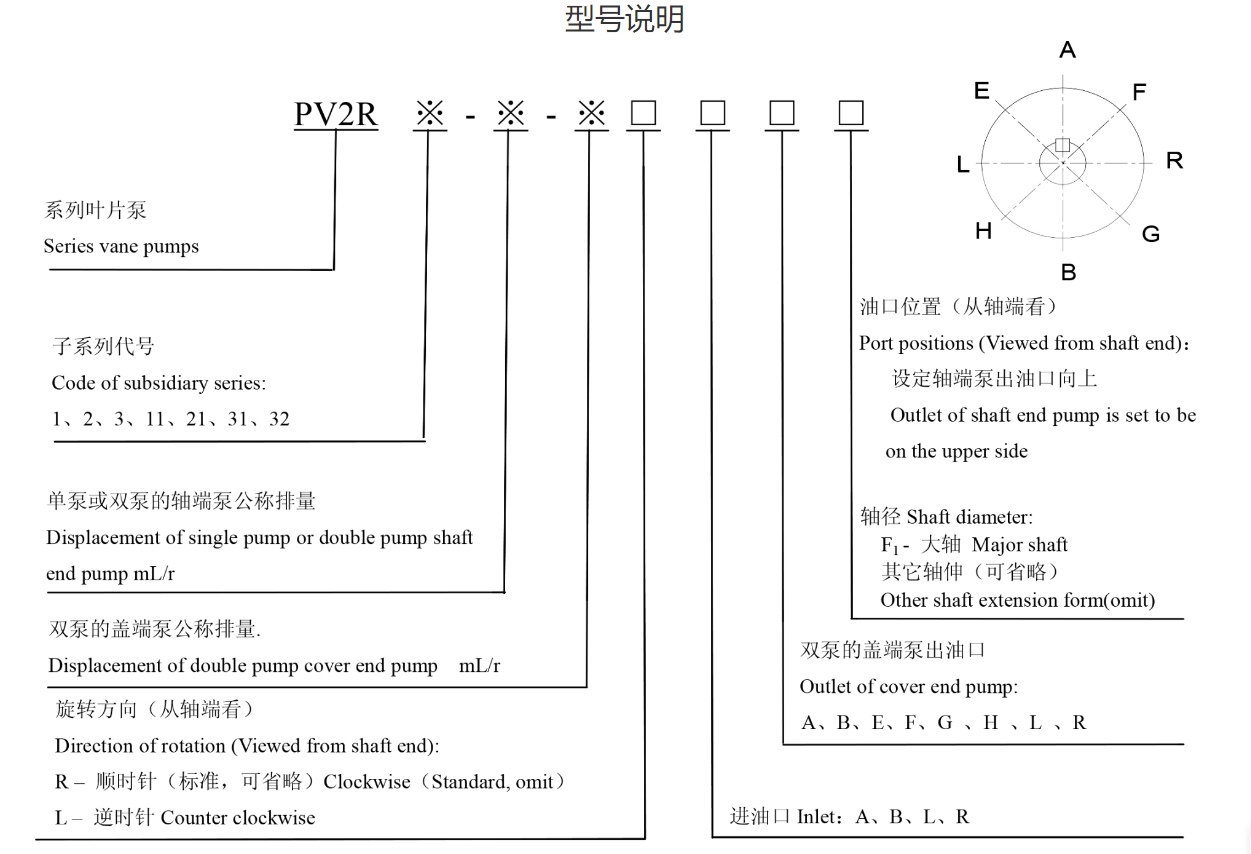

When the working fluid is a phosphate ester solution, special sealing (fluororubber) is required. Please add F -] before specifying the model when ordering.
The driving power is at P=16MPa and n=1500r/min.
discharge.
